Universal Control Case

Download product sheet for specific data.

UCCase2

Universal Control Case

UCCase3

Universal Control Case



Main Benefits
The Universal Control Case is a smart technology service tool used to enable remote monitoring of product performance and provide important insights to maintenance assessment. It enables remote support on standard and SOBO Svendborg Brakes brakes systems during commissioning and service.

Hardware

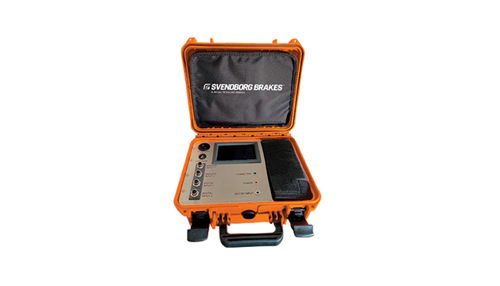

Portable case used as a tool for remote support and data visualization during commissioning or service of Svendborg Brakes brake systems, including all Hydraulic Power Units
(2-stage, On/Off) and all SOBO® (soft braking) systems.

  • Main data input is brake-side pressure from included pressure transmitter.

  • Connected ethernet cable or WiFi hotspot gives trouble-free internet access through high security gateway.

  • Stored data can be displayed via a web interface on a custom UCCase Dashboard.

  • Visualization coupled with analytical models facilitates the diagnosis of the brake system behavior and can foresee and advice to take an action to prevent malfunction

  • UCCase give full service controls of SOBO iQ, including possibilities to set SOBO iQ
    settings and upgrade firmware
