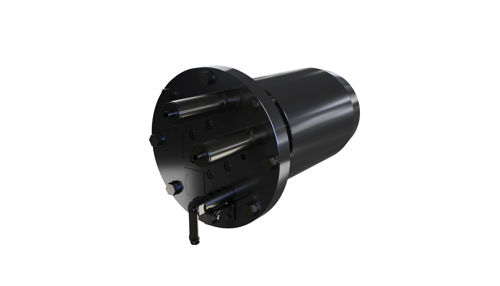

ROTOR LOCKS

Rotor locks are used in the wind turbine industry and are typically mounted to the turbine´s main rotor shaft, between gearbox and generator. A rotor brake is primarily intended for use as safety brake during emergency stops under high wind conditions. Svendborg Brakes rotor lock units hold a global market leading position. The rotor lock is activated by running the lock bolt into the lock disc using hydraulic power; a "locked" signal is then transmitted to the control system. The units are engineered to handle the large output torque generated by the high ratios found in wind turbine gearboxes.

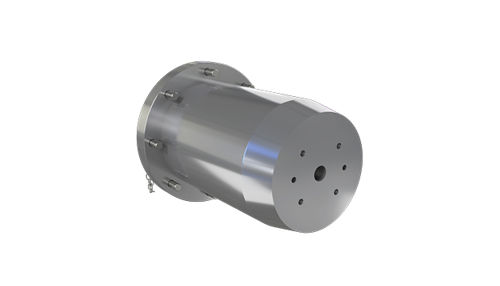

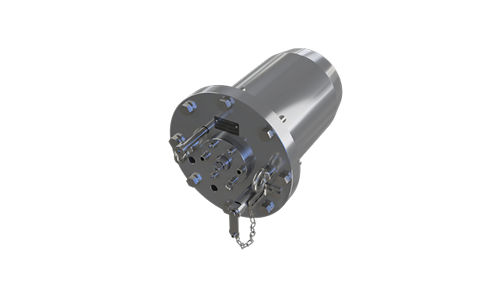

LSM240

LSM240

LSM240

LSM240

LSM240

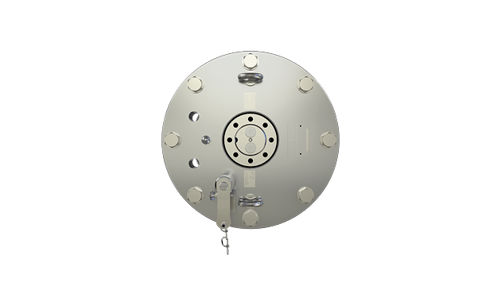

LSA240

LSA240

LSA240

LSA240

LSA240

Svendborg Brakes operates with three types of Rotor Lock solutions

LSM – Manual driven rotor lock
LSA – Hydraulic driven rotor lock
LSL – Electrical driven rotor lock


Safety features

Fastening bolt with dedicated holes for padlocks
Position Indicator Switch for assurance engaged/disengaged position


Key Benefits For Wind Turbines

Compliance with safety regulation (e.g. requirement for form-fit locking)
Suitable for extreme wind load situations
Reliable and proven design on thousands of turbines
Monitoring capabilities by visual and/or electrical sensors
Hydraulic or Mechanical activation
Fully automated rotor lock engagement available
Best in class corrosion protection
Full engineering support from first samples to serial deliveries

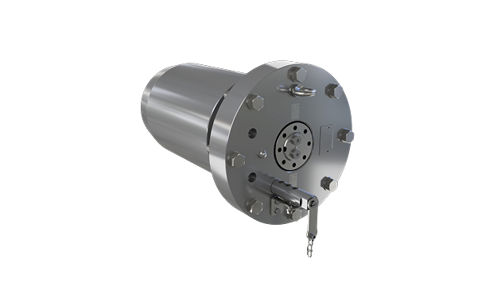

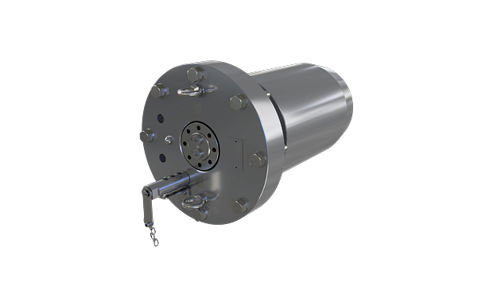

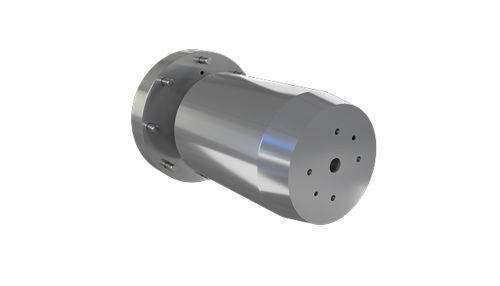

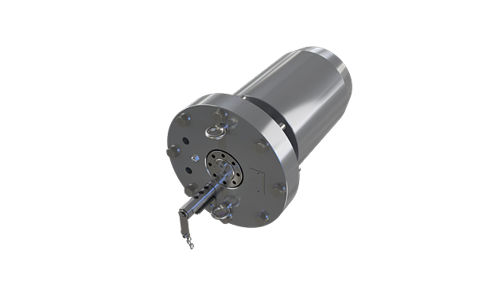

LSA240/Rotor Lock hydraulic applied

The LSA rotor lock series comprises a hydraulic applied safety feature available in various sizes for use during maintenance purposes in a Wind Turbine. This safety component is specifically designed to withstand the requirements of operating under harsh conditions and to withstand high radial loads, making it ideal for use as locking device for the rotor in Wind Turbines.

Key Benefits

Hydraulic applied
Compliance with safety regulation (form-fit locking)
Position Indicator Switch for assurance of engaged/disengaged position
Fastening bolt with dedicated holes for padlocks
Few moving parts, easy maintenance and lifting eyes available for safe handling
Prepared for installation of various monitoring systems

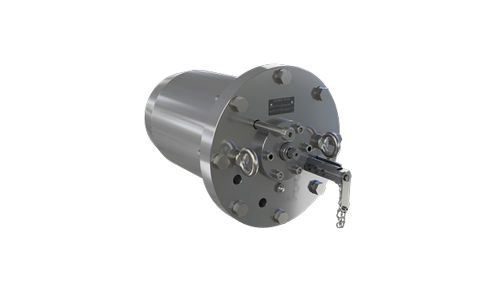

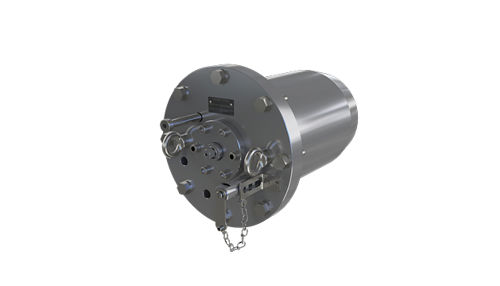

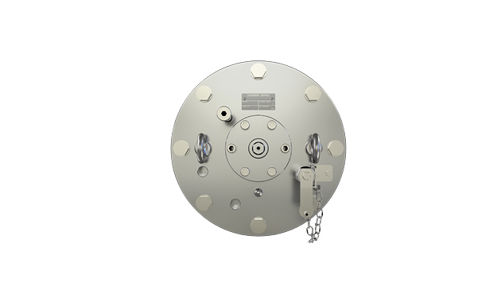

LSM240 Rotor Lock Hydraulic applied

The LSM Rotor lock series comprises a manually applied safety feature available in various sizes for use during maintenance purposes in a Wind Turbine. This safety component is specifically designed to withstand the requirements of operating under harsh conditions and to withstand high radial loads, making it ideal for use as locking device for the rotor in Wind Turbines.



Key Benefits

Manually applied
Compliance with safety regulation (form-fit locking)
Position Indicator Switch for assurance of engaged/disengaged position
Fastening bolt with dedicated holes for padlocks
Few moving parts, easy maintenance and lifting eyes available for safe handling
Prepared for installation of various monitoring systems
