Hydraulic Applied / Spring Released
An active brake where oil pressure needs to be applied - in order to brake. There are no springs in this kind of caliper. This brake can provide clamping force up to 200,000 N. The BSAB brakes are multi piston Dual-Action brakes with integrated and fixed pad holders.

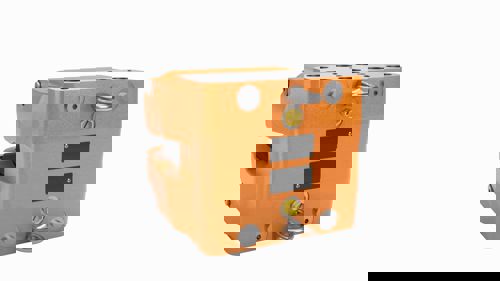

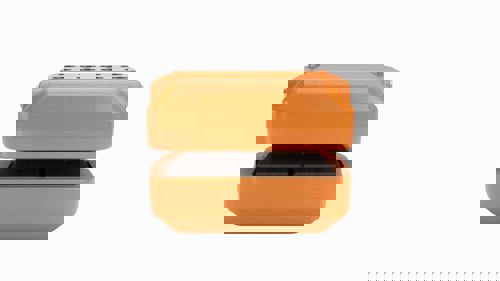

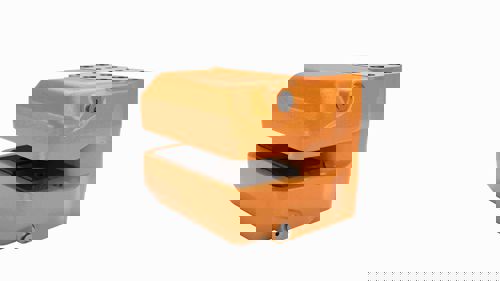

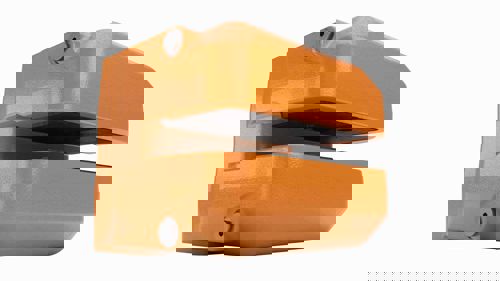

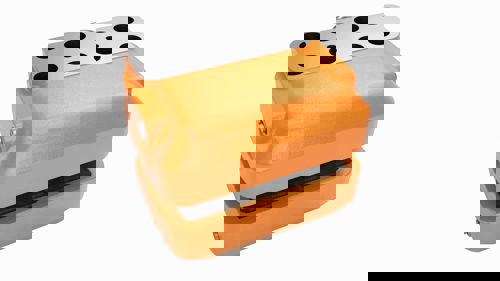

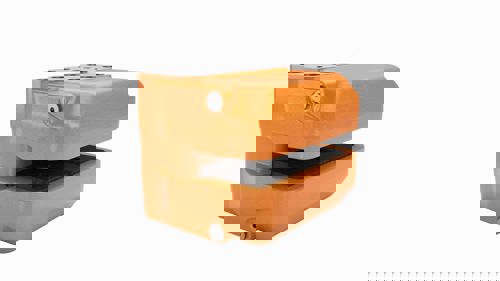

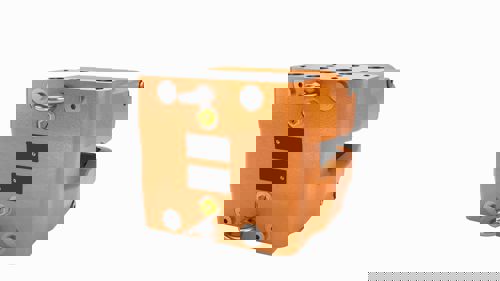

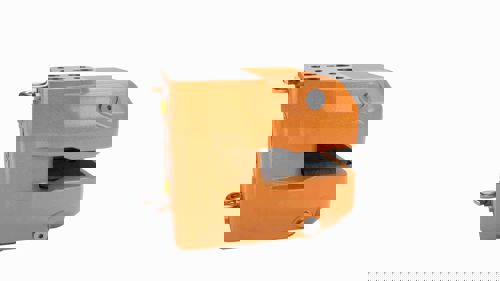

BSAB 90
BSAB 90
BSAB 90
BSAB 90
BSAB 90
BSAB 90
BSAB 90
BSAB 90
BSAB 90

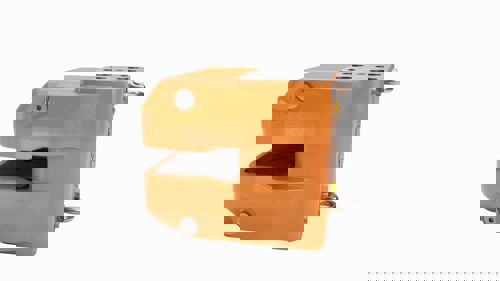

The BSAB90 Yaw Brake is a hydraulic applied active brake with a tight fit between the brake pad and brake with no need for springs. With the capability to generate a high and adjustable clamping force, these brakes are multi-piston units that feature integrated and fixed pad holders making it ideal for yaw brake systems in Wind Turbines.
Applicable for several disc thicknesses
Hydraulic applied
Large brake pad area for minimized wear, stress and lower disc temperatures
Few moving parts, easy maintenance and lifting eyes available for safe handling
Drain ports for collection of potential leakage, reducing the risk of contamination
Prepared for installation of various monitoring systems
Broad selection of friction materials available
Technical Drawings
490 5923 803 B
490 5923 803 B Tech Draw Bsab90 X 550
490 1946 8Xx F
